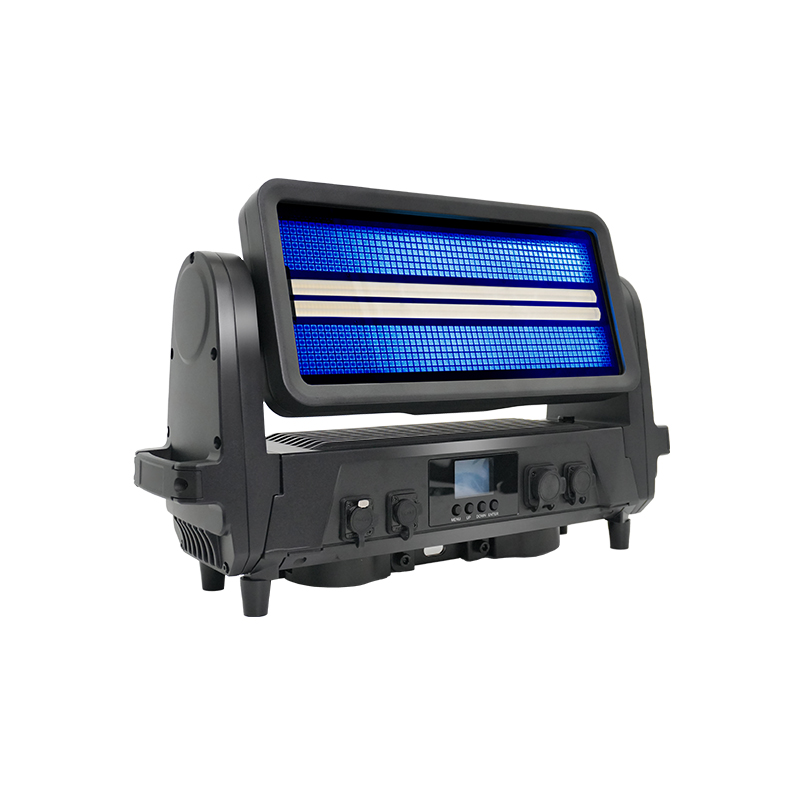

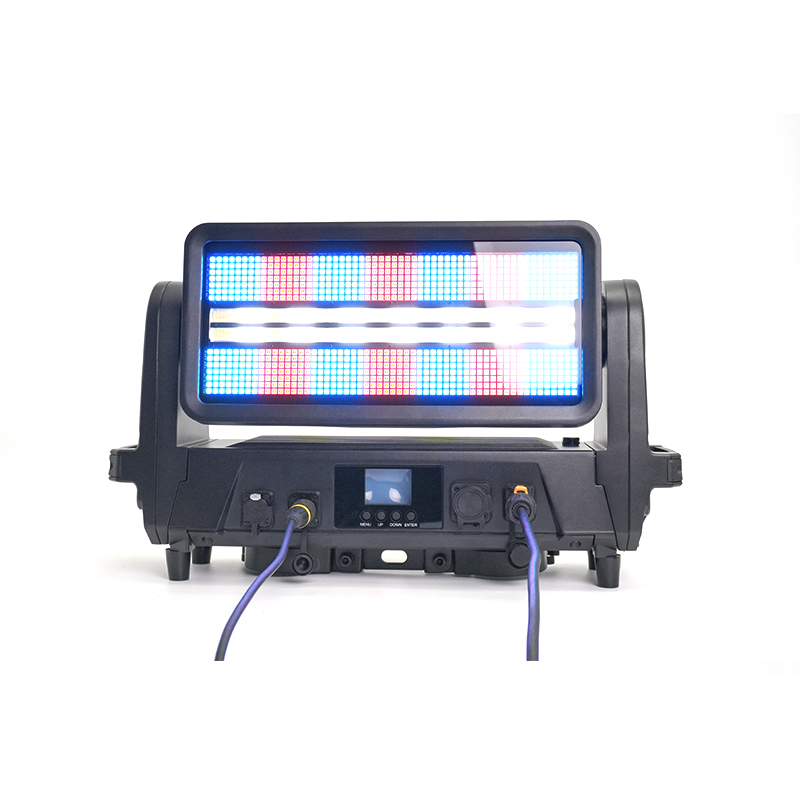

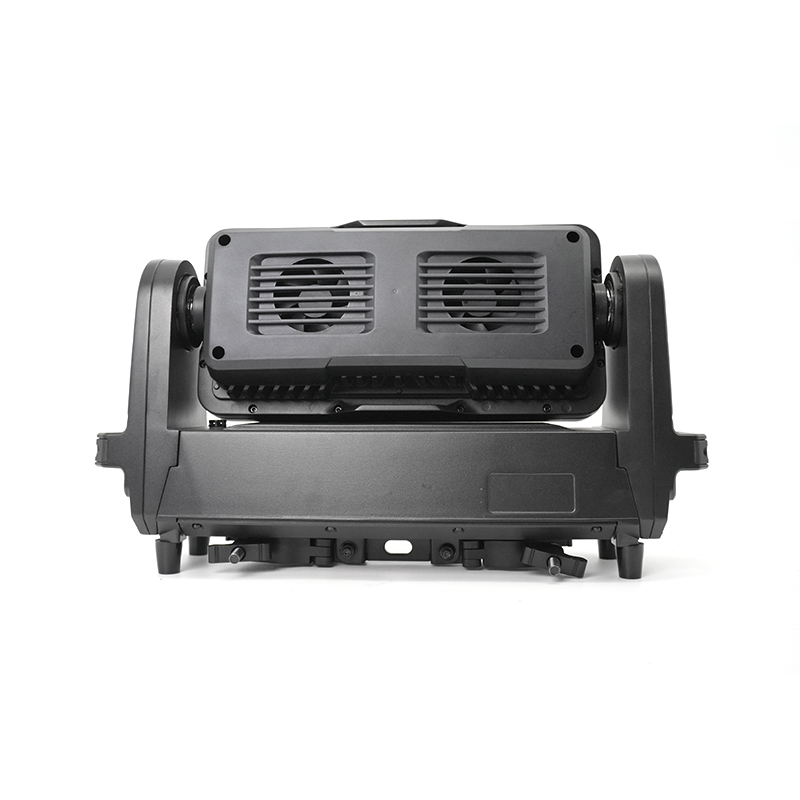

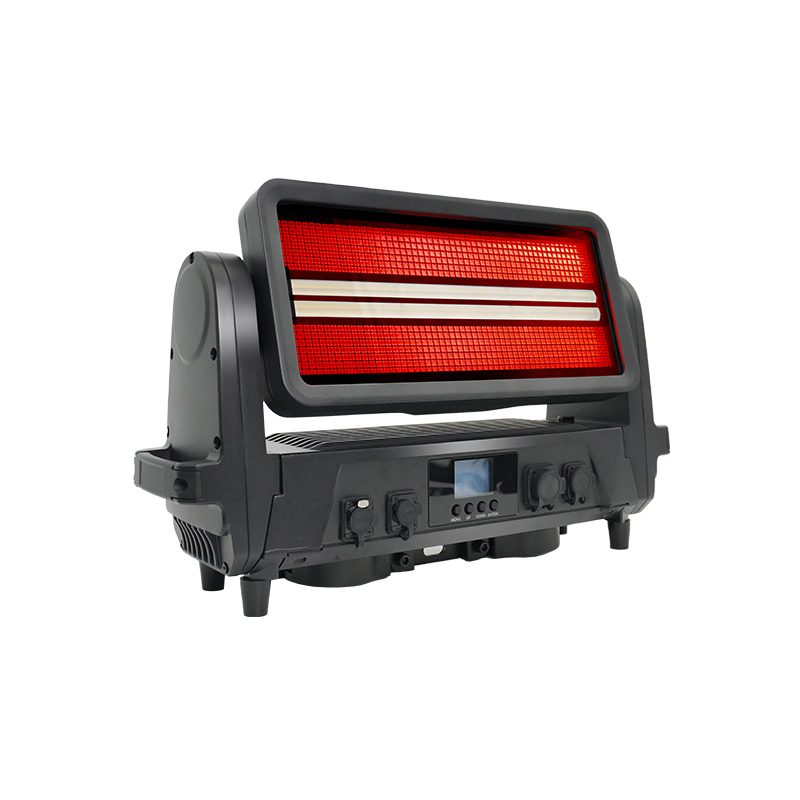

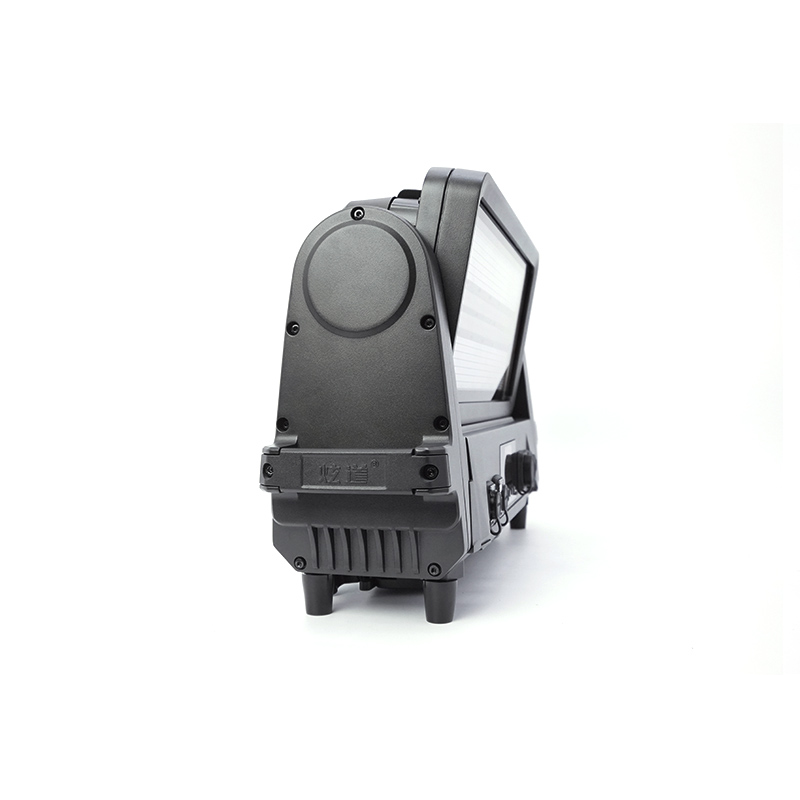

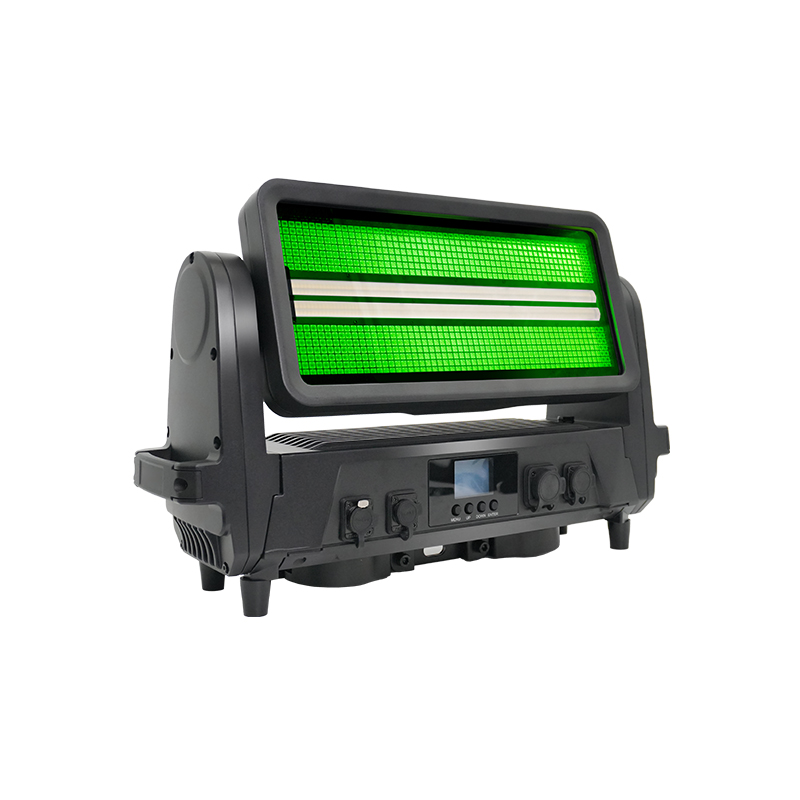

STM12 1200W Hybrid Moving Head Strobe Light - RGB LED White Tube /IP65(without Art-Net)

Model: STM12
Lamps: 392Pcs 1.5W CW+784 0.8W RGB
Beam-A: 117°
Tilt-Dmx: 185°
Control: DMX512/RDM
Dmx-ch: 8/11/13/24/30/70/97CH
Input-V: AC100-240V  50/60HZ
Power: 700w
Housing: Aluminum-magnesium alloy
Protect: IP65
Connect: PowerCon /3/5Pins DMX
Size: 540x338x152mm
N.W.: 12kg
IP Rating: IP 65
Lumen: ≥ 72600
CRI: ≥90
ColorT: 2700K-8000K
Tilt-Manual: 185°
Product Details

STM12 1200W Hybrid Moving Head Strobe Light - RGB LED White Tube /IP65(without Art-Net)




STM12



Specification

ModelSTM12

Panel Light source 784pcs 0.8W RGB 3in1 LEDs

Strobe Light source :392pcs 1.5W CW LEDs


Main feature

Support   water flowing effect

Dyeing/mixing is powerful and wash wide area

High brightnessoutput with delay strobe function

IP65 protectionlevel, suitable for all kinds of outdoor harsh environment

Small size, lightweight, easy to install and disassemble


Control

DMX channel 8/11/13/24/30/70/97 Channel

Control ModeDMX-512, RDM

RDM:Bi-directional communication


Effect

Shutter30HZ

Dimmer0-100 linear dimming

Built in effectbuilt in mass macro function effect

Color temp2.700K-8.000K


Structure

DisplayTFT display

DMX connector5pin/3pin input/output

Power connector:powerCON TRUE1 input/output

IP ratedIP65


Physical parameter

Voltage:100-240V AC,50/60 Hz

Power Consumption: 1200W

Dimension 540X338X152mm

N.W: 12.2kg


Dimension mm)
