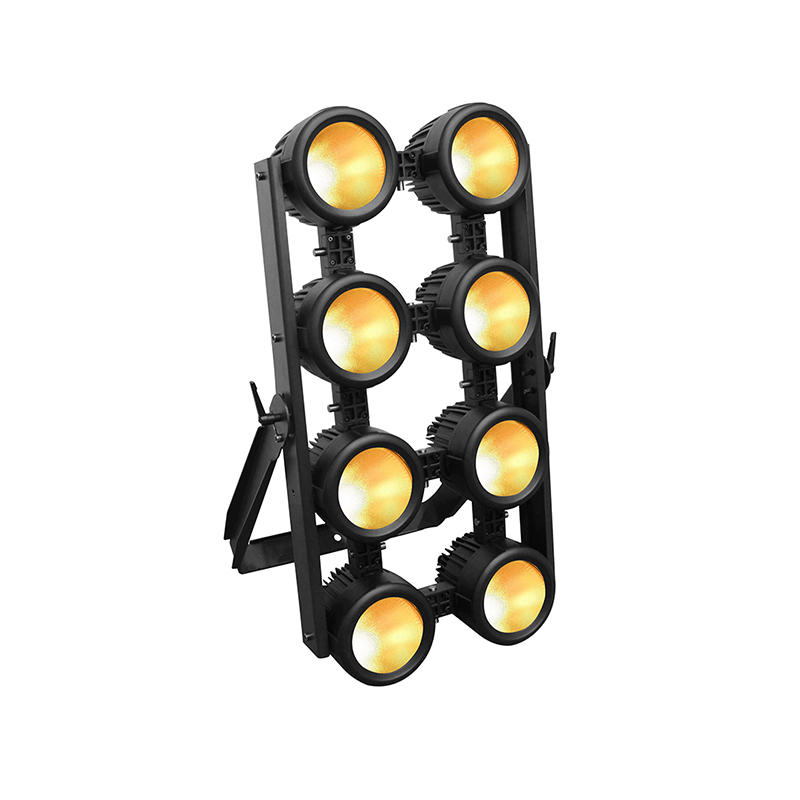

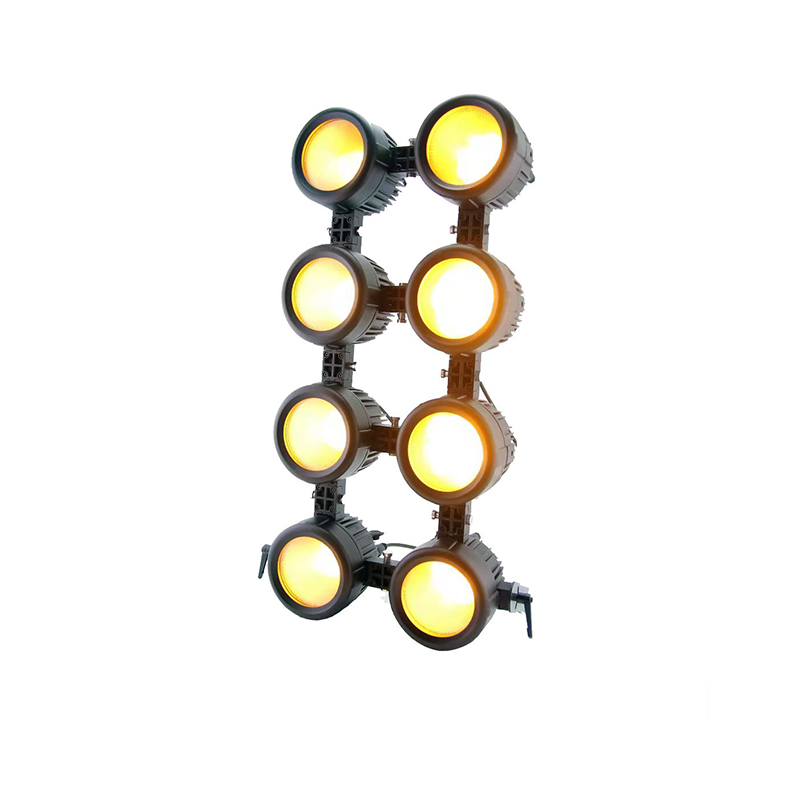

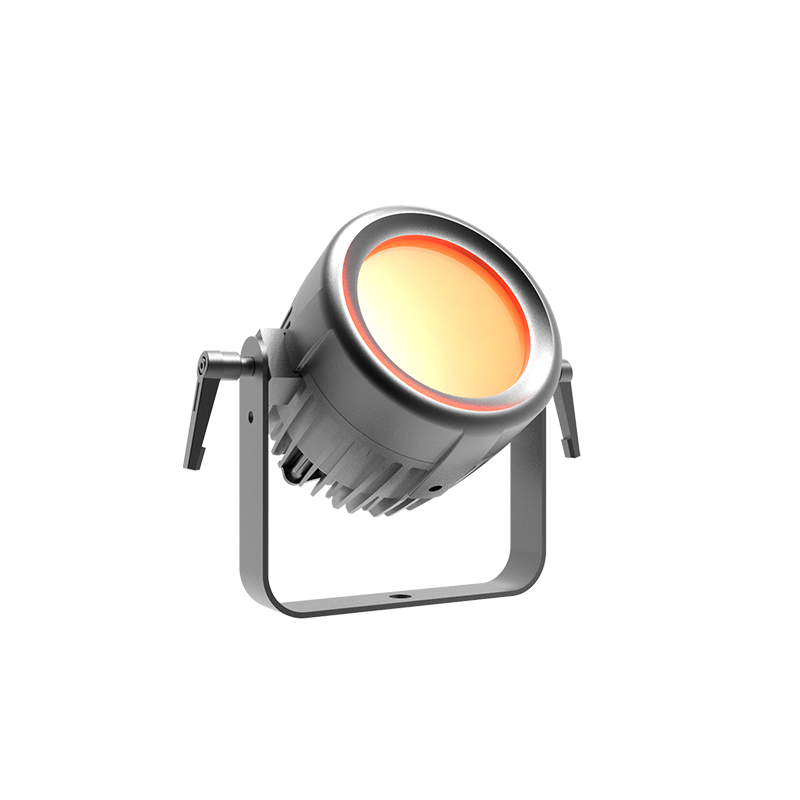

Free split-joint
COB Blinder Wash Matrix
A8
Specification
Model：A8
Light source：8X120W COB
Light source color：Amber ，white
Material： Magnesium alloy
Main feature

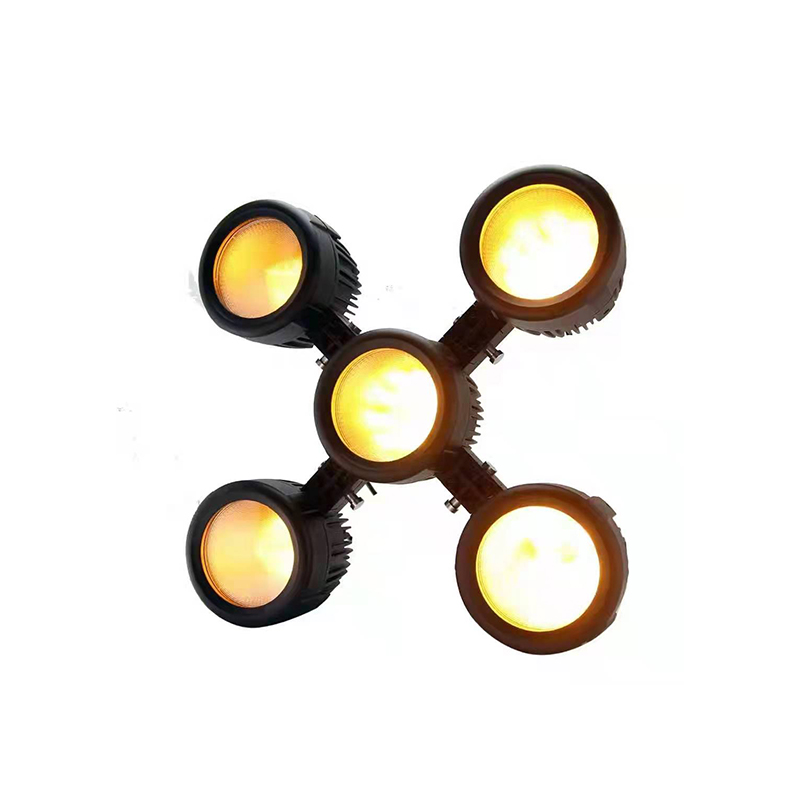

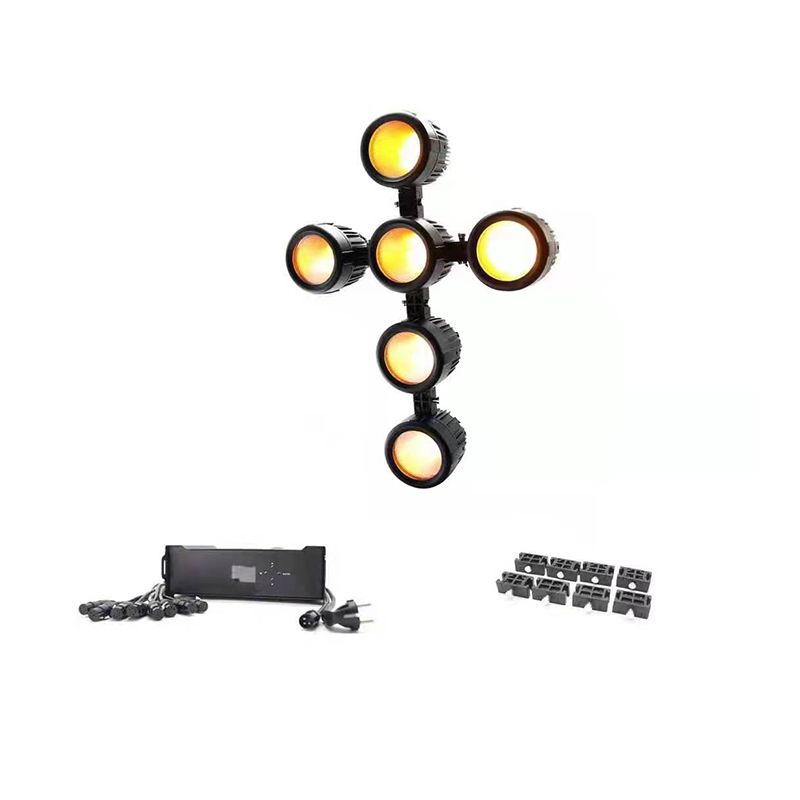

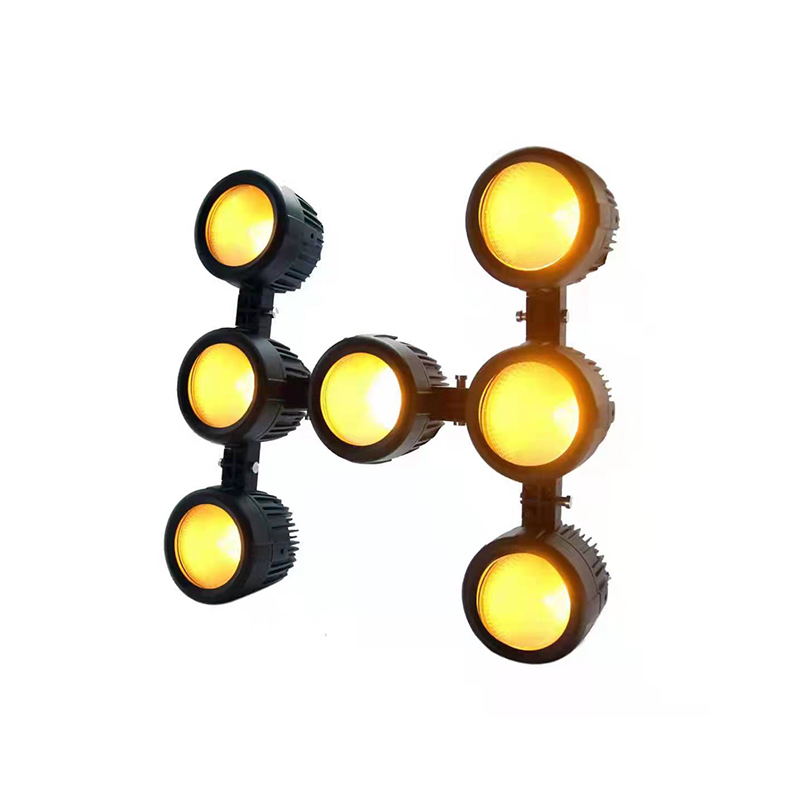

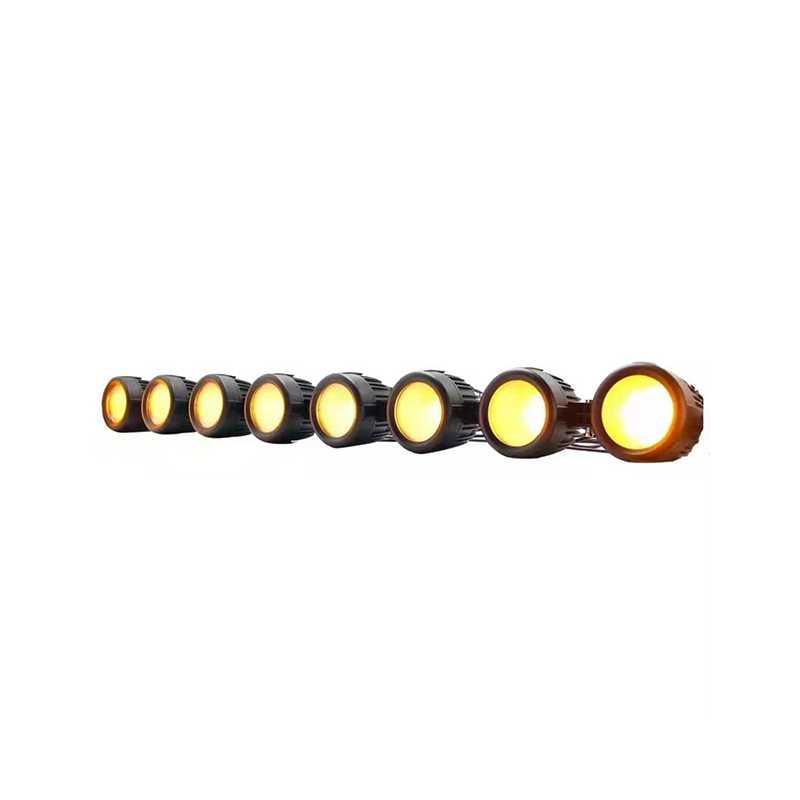

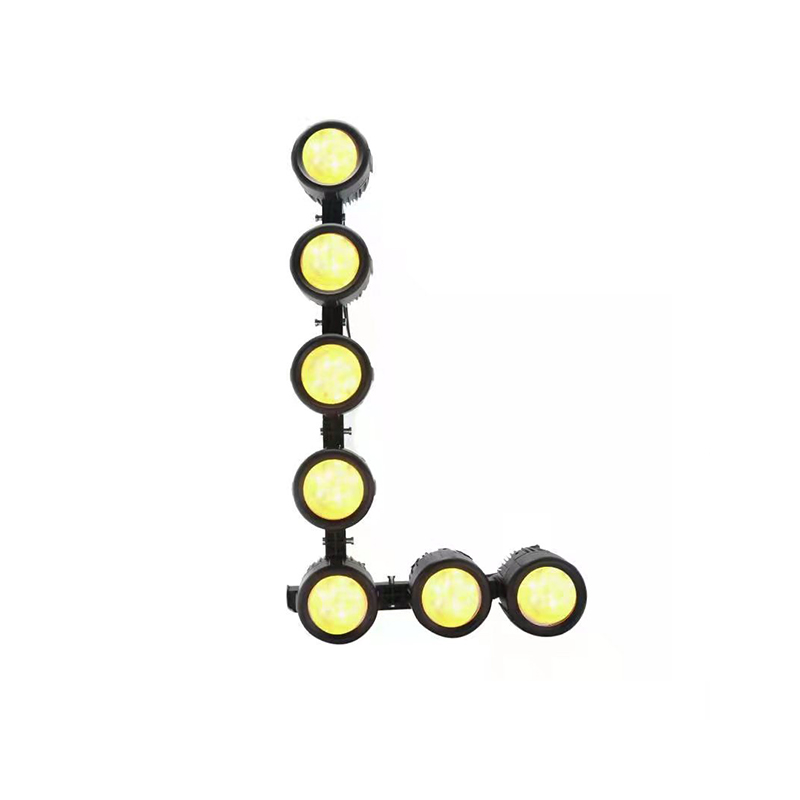

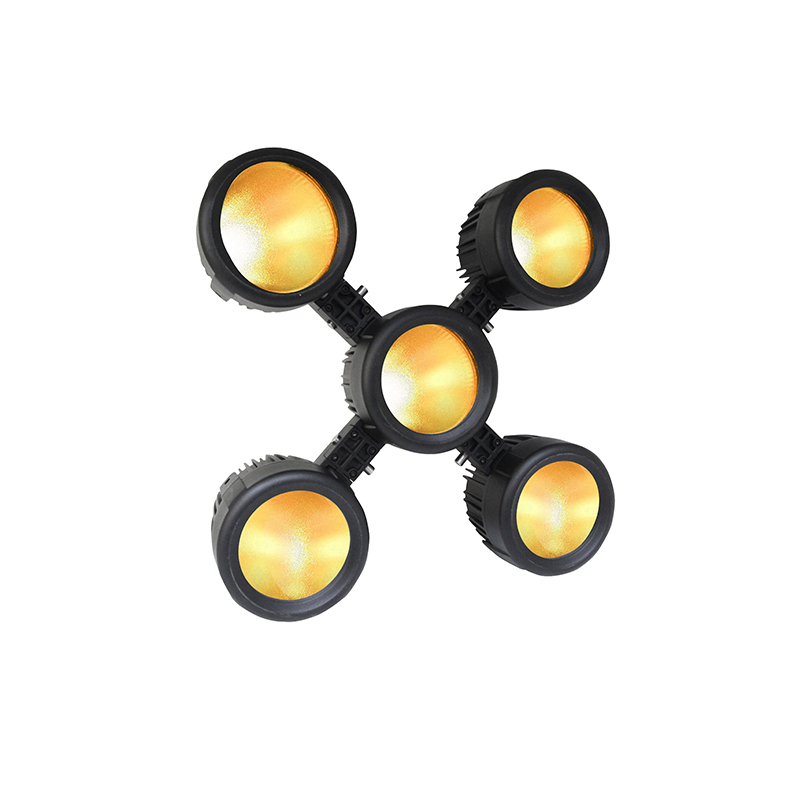

Freely be installedas various model like digital shapes, geometric shapes, used for touring concert,
music festival andwedding party,etc.
Strongwashing/mixing/flood color
Compact fixture andeasy to install
Rich stagecreativity and entertainment
Control
DMX channel：2CH/5CH/19CH
Control mode：DMX-512, RDM
Effect
Strobe：20HZ
Dimmer：0-100 linear dimming
Color temperature：2700K-6500K
Beam angle：50°
Pixel control：Support
Effect1：Auto program
Effect2：Amber/White
Effect3：Strobe control
Structure
Display：LCDdisplay
DMX connector：3pin input/output
Power socket： power connectorinput/output
IP rated：IP20
Physical parameter
Voltage：110-240V AC,50/60 Hz
Power Consumption：120W/piece
Dimension：13.5cm in diameter, 10.2cm inheight
N.W：1.04kg/piece
