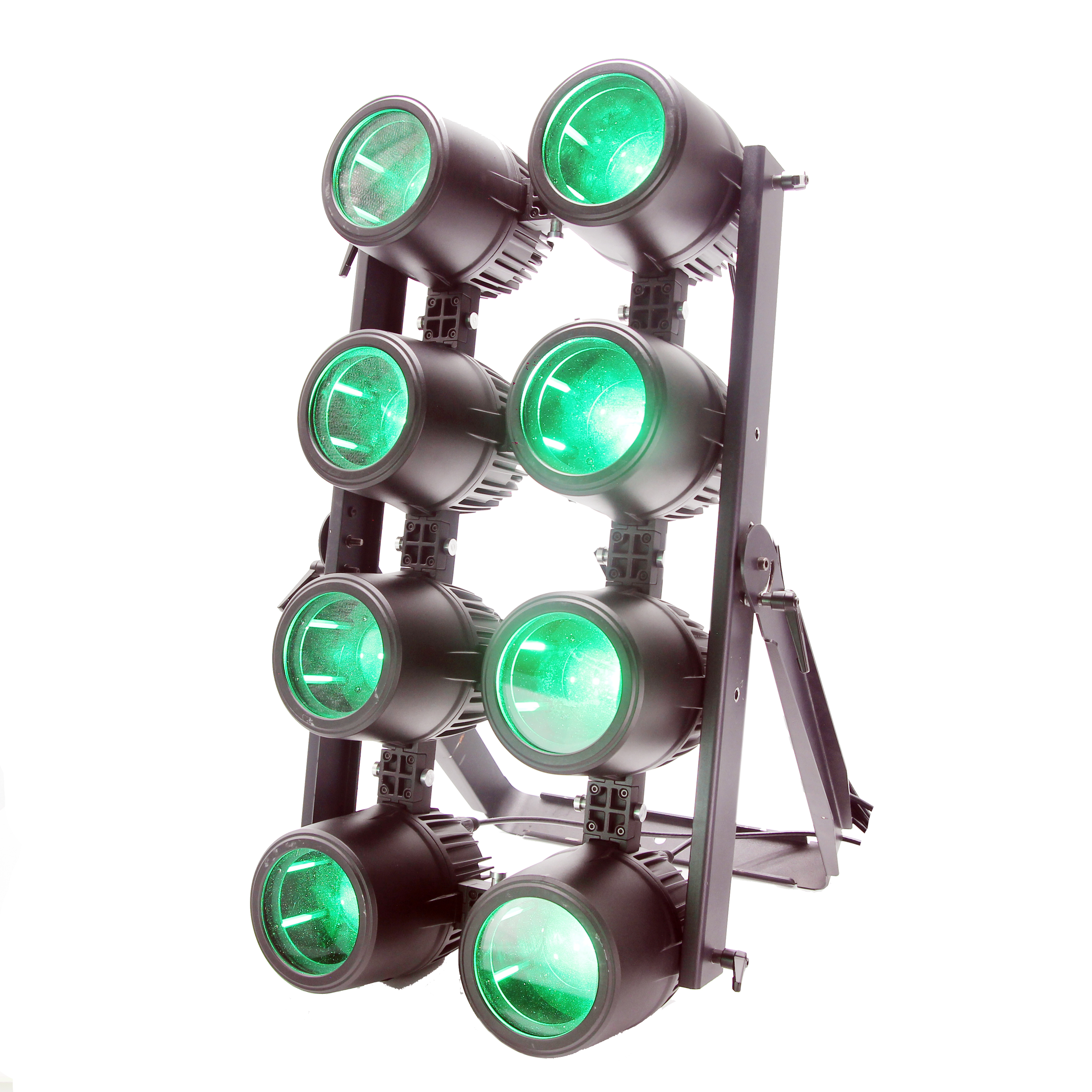

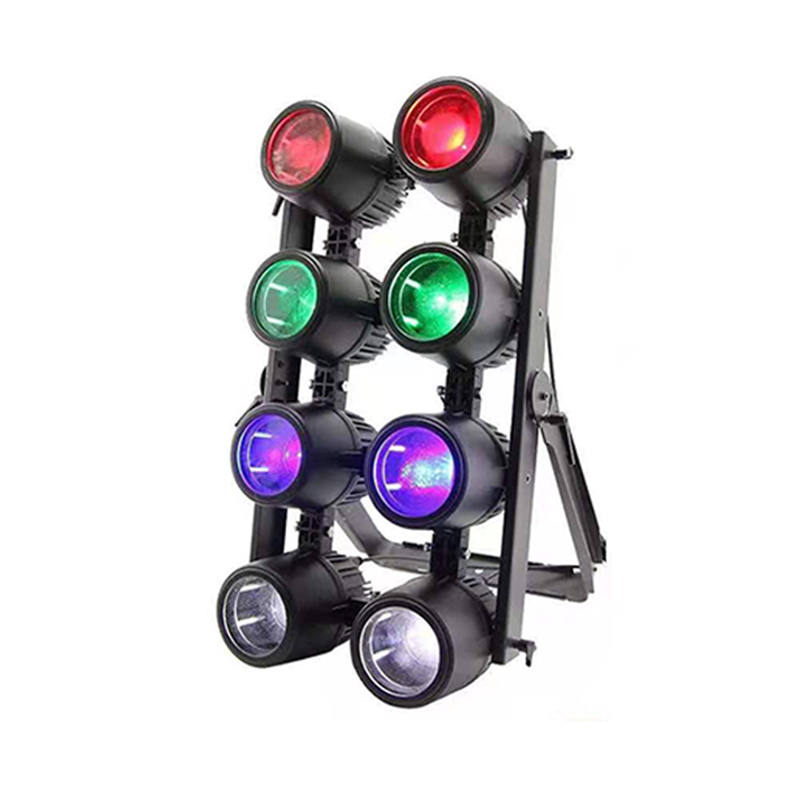

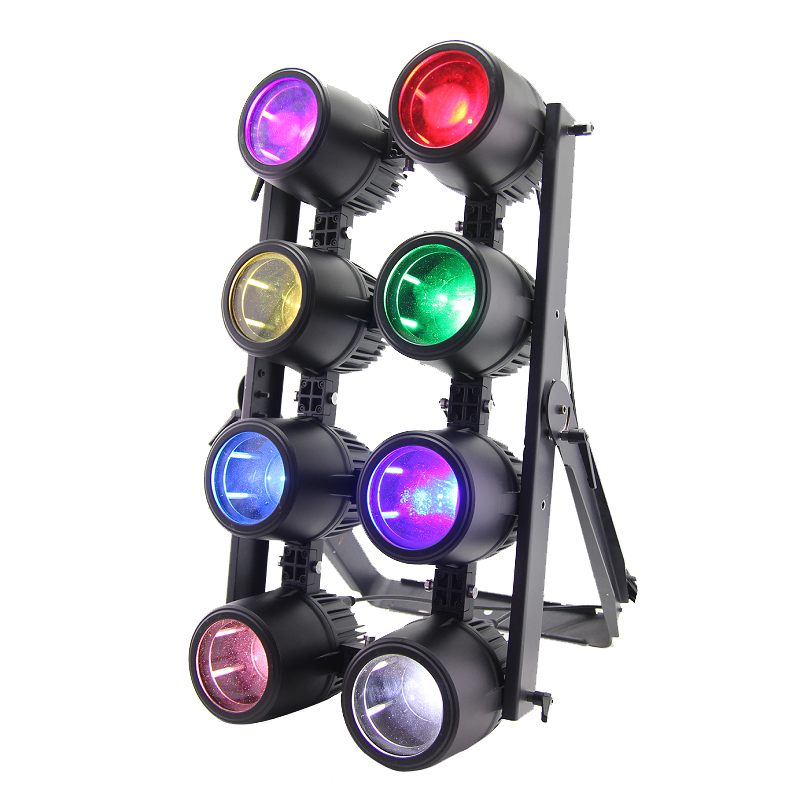

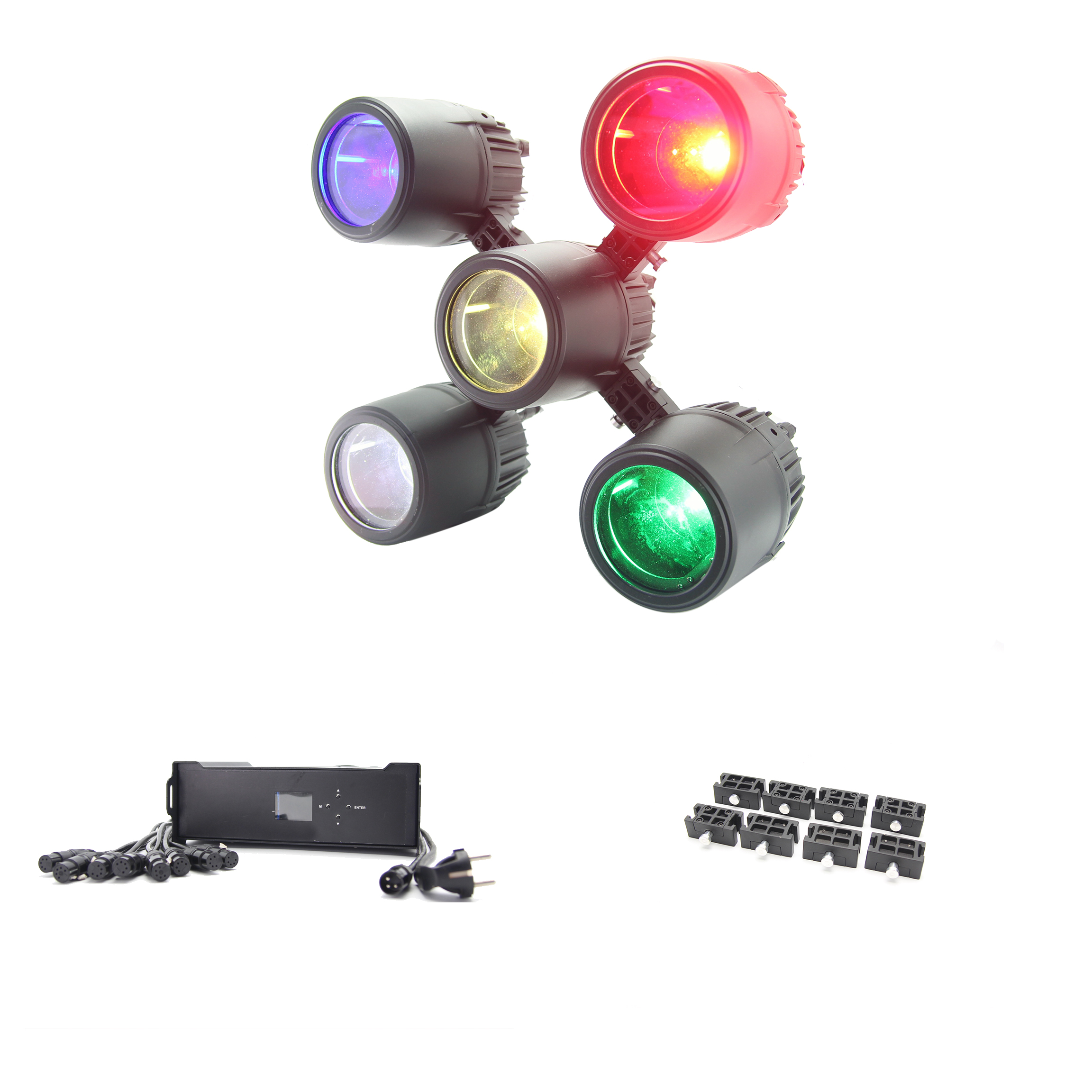

Free split-joint
LED waterproof zoom par
X8
Specification
Model：X8
Light source：1X60w Osram LED
Light source basecolor：RGBW
Material：Magnesium alloy
Main feature

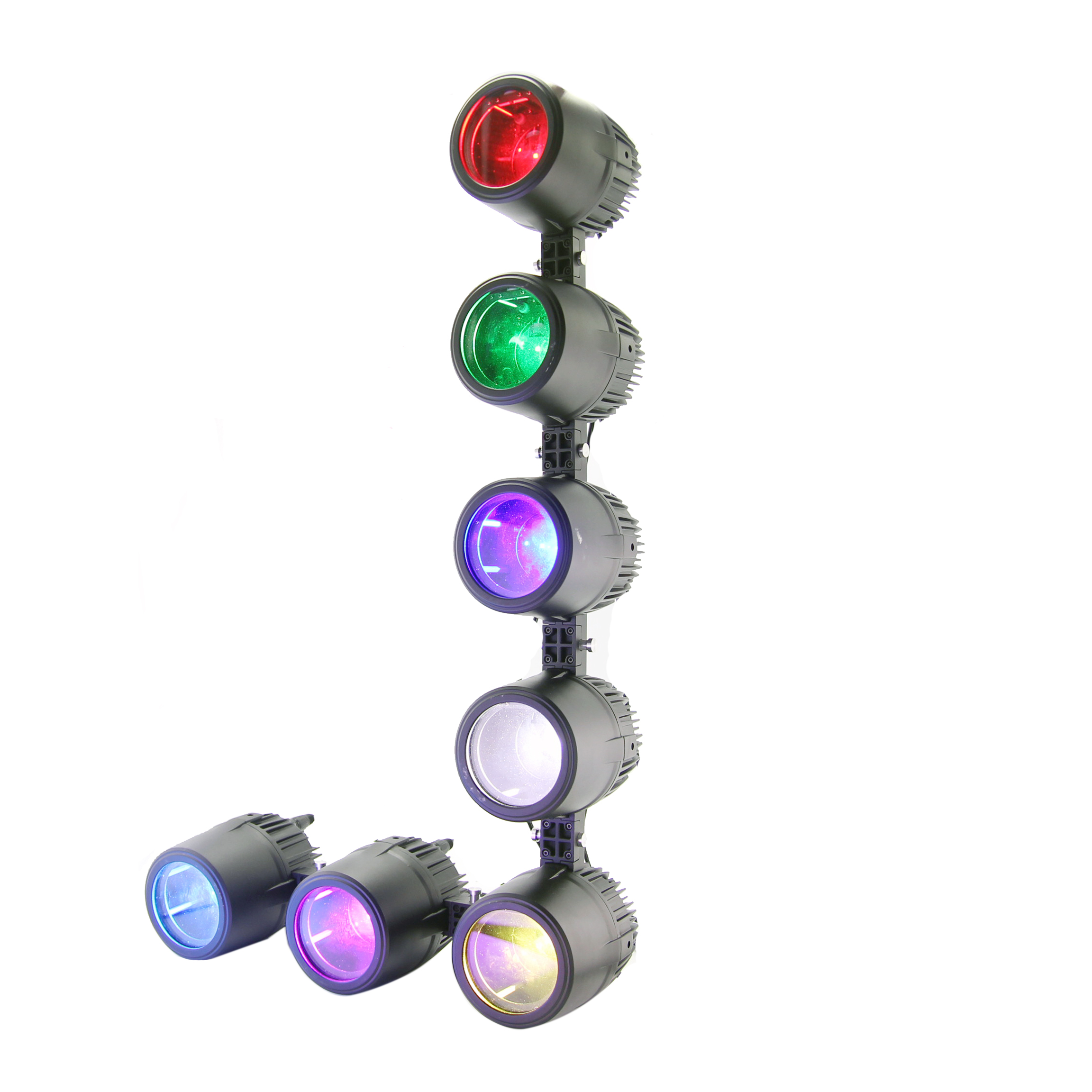

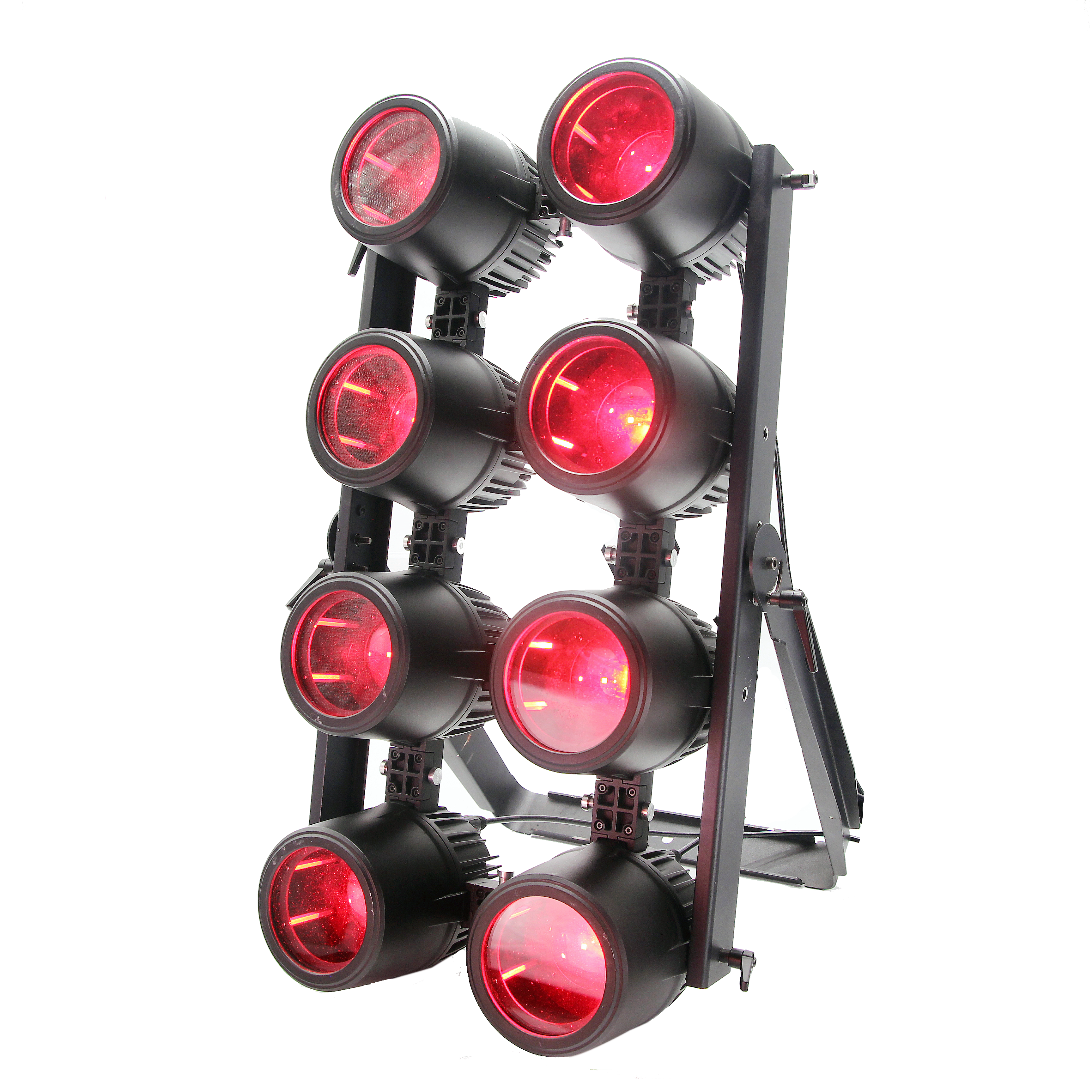

Freely be installedas various model like
digital shapes, geometric shapes, used for
touring concert,music festival and
wedding party,etc.
Strongwashing/mixing/flood color
Compact fixture andeasy to install
Rich stagecreativity and entertainment
Control
DMX channel：5CH/8CH/43CH
Control mode：DMX-512, RDM
Effect
Strobe：20HZ
Dimmer：0-100 linear dimming
Beam angle：3°—35°
Pixel control：Support
Effect1：Atomizing and washing
Effect2：Beam
Effect3：RGBW mixing
Structure
Display：LCDdisplay
DMX connector：3pin input/output
Power socket： power con in/out
IP rated：IP20
Physical parameter
Voltage：110-240V AC,50/60 Hz
Power Consumption：60W/piece
Dimension：140mm diameter, 180mm H
N.W：1.8kg/piece
