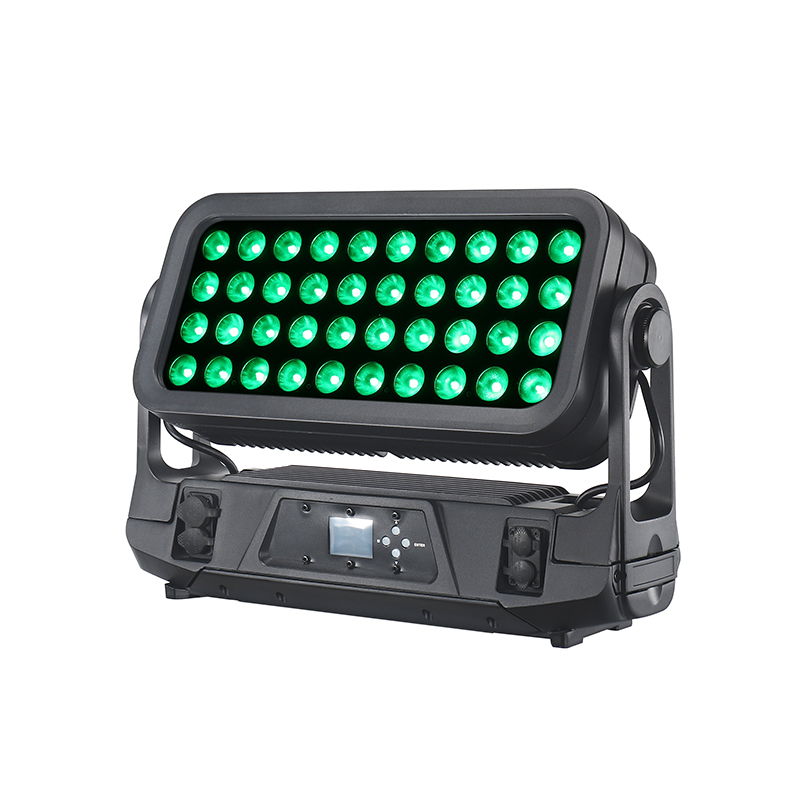

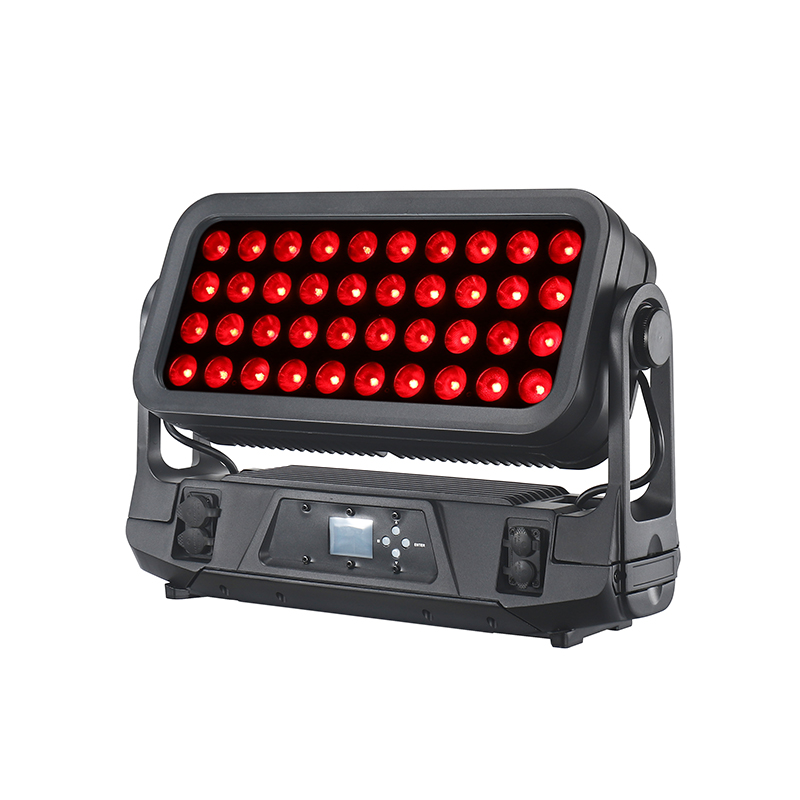

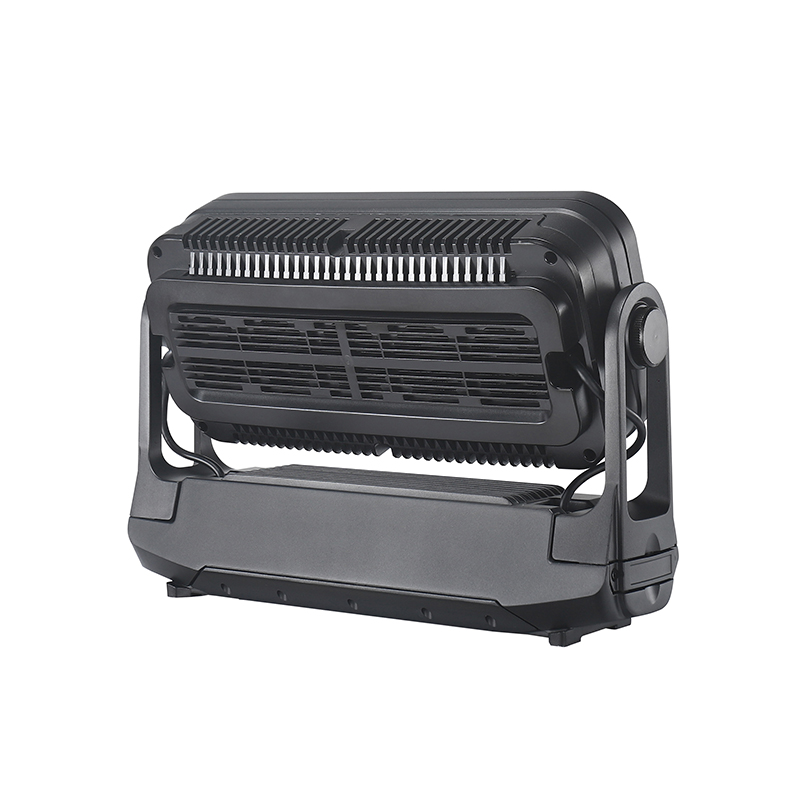

WA2020
Specification
Model：WA2020
Light source：20W 4in1 LED
LED counts：40pcs
LED color：RGBW
Main feature
800W RGBW LED lightsource
RGBW color mixing,bright and soft colors
Rugged die-castbody, tempered glass panel
Small size, lightweight, high brightness output
IP65 protectiongrade, applicable to various indoor and outdoor occasions
Control
DMX channel：6CH / 6CH（CTC）/ 8CH / 10CH（CTC）
Control Mode：DMX-512, RDM
RDM：bi-directional communication
Effect
Shutter：30HZ
Dimmer：0-100 linear dimming
Internal effects:LED macro effects
Beam angle：48°/25°/14°/8°
Structure
Display：LCD display
DMX connector：5pin/3pin input/output
Power connector：powerCON TRUE1 input/output
IP rated：IP65
Physical parameter
Voltage：110-240V AC,50/60 Hz
Power Consumption：800W
Dimension：577x152x402（mm）
N.W：21.2kg

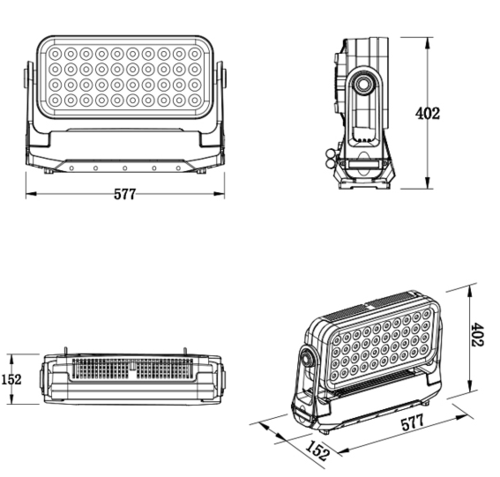

Dimension （mm）
